1+1 Full Automatic Face Mask Machine Lt001

It is a fully super high speed Automatic Surgical, Medical Mask Making Machine for disposable face masks from material feeding, nose wire implanting, blank mask welding/folding/cutting, ear loop wealding until a complete mask is finished. It could ensure the quality mask and greatly reduce the chance of human touching the material and save the labor cost.The capacity reaches to 110-130pcs/min.

No.	Items	Descriptions
1	Basic specification	Applicable for 2 layer or 3 layer mask with ear hook mask welding machine
2	Machine weight	1065kgs
3	Electrical specification	220V±5%, 50HZ, single phase, 10kw
4	Air pressure	0.5-0.7MPA,150L/min (Required Air Compressor 3.7KW)
5	Required environment	humidity 5% -35% RH, temperature 10-35 degrees, no dust, no flammable and corroded air.
6	Size	17.5cmx9.5cm (can be customized)
7	Production speed (1 main unit of face mask machine)	110pcs/min

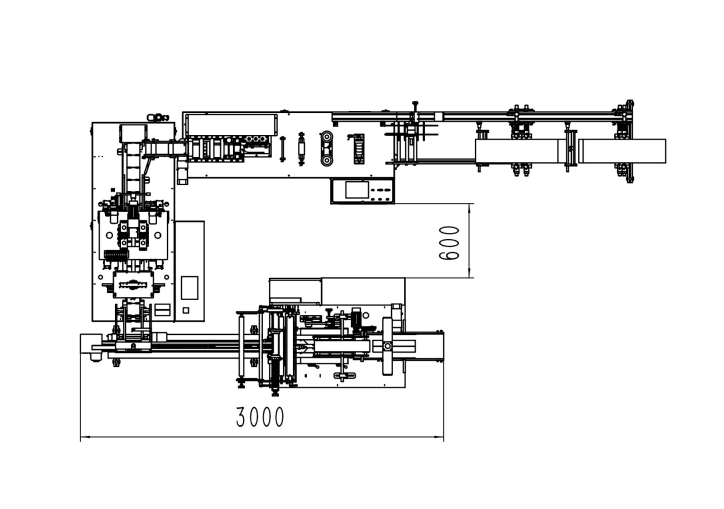

8	Machine size (please refer to the physical size)	5000mm(L)X3600mm(W)X1980mm(H)

Lt001 Automatic High Speed 110+ Face Mask Machine with latest technology:

1.Rectification Device to make sure easy mounting.

2.In the welding folding, we use "Cold Folding”, so as to easy for connecting to a packing machine and saving energy and at the same time reduce the machine running burden.

3.In the Ear loop conveyor procedure there would be a vibrating device so as to straighten the loop.
