1+1 Medical Face Mask Line+UV Sterilization+Vision Checking+Packing Machine

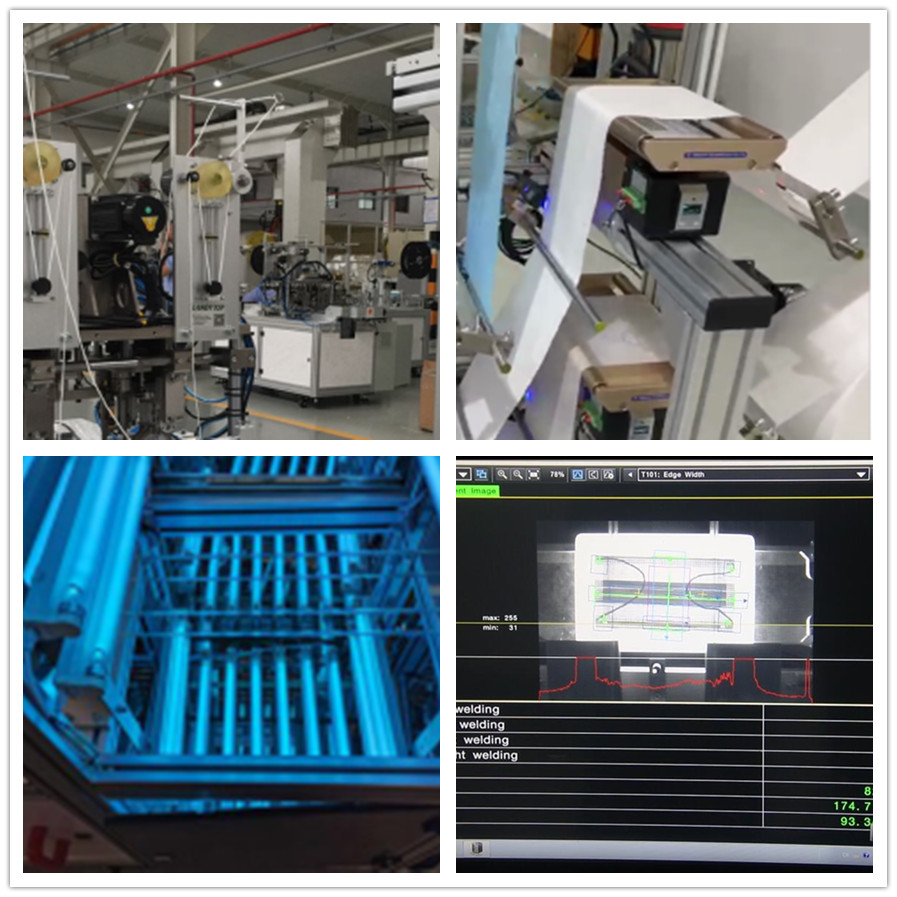

Automatic surgical mask making machine, used for disposable masks, from feeding, nasal line implantation, welding/folding/cutting of blank masks, earring knitting to the completion of the complete mask. Then pass the finished mask through the ultraviolet sterilization box, our visual inspection system can intelligently select qualified products, and finally complete automatic packaging. It can ensure the quality of the mask, greatly reduce the chance of people contacting the materials, and save labor costs. The production capacity reaches 110pcs/min.

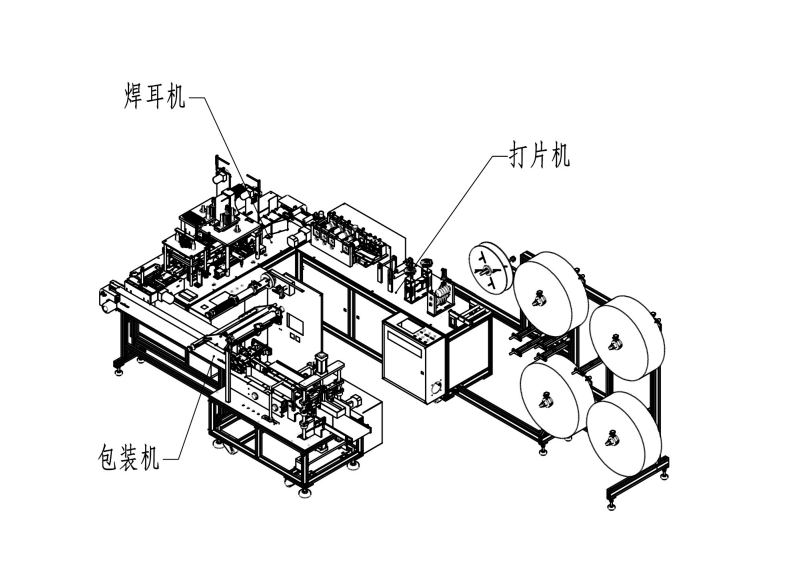

1+1 Medical Face Mask Line

No.	Items	Descriptions
1	Basic specification	Applicable for 2 layer or 3 layer mask with ear hook mask welding machine
2	Machine weight	1065kgs
3	Electrical specification	220V±5%, 50HZ, single phase, 10kw
4	Air pressure	0.5-0.7MPA,150L/min (Required Air Compressor 3.7KW)
5	Required environment	humidity 5% -35% RH, temperature 10-35 degrees, no dust, no flammable and corroded air.
6	Size	17.5cmx9.5cm (can be customized)
7	Production speed (1 main unit of face mask machine)	110pcs/min
8	Machine size (please refer to the physical size)	5000mm(L)X3600mm(W)X1980mm(H)

Packing-machine UV Sterilization+Vision Checking

Film & Thickness	OPP / 0.012-0.07mm Film Width: Max 320mm Film Roll Diameter: 320mm
Bag Size	W: 20-100mm H: 80-260mm
Packing Speed	10-80 bag/min
Electric Spec.	220V/50Hz
Power Consumption	2.4KW
Machine Dimension	4000X930X1370mm
Packing Dimension	Two Packages: Main Body: 15608501520mm=2.016CBM Conveyor: 2670550360mm=0.534CBM
Machine Weight	465kgs
G.W.	528kgs
Testing Film	Include one small roll

UV Sterilization+Vision Checking

Machine Dimension	2400mm(L)810mm(W)1640mm(H)
Machine Weight	<200KG
Electrical Specification	AC 220V ±5%;50HZ;
Power Consumption	0.5KW
Air Pressure	0.5-0.8MPa
Production Speed	110PPM
Required Environment	humidity 5% -35% RH, temperature 10-35 degrees.

Lt001 Automatic High Speed 110+ Face Mask Machine with latest technology:

1.Rectification Device to make sure easy mounting.

2.In the welding folding, we use "Cold Folding”, so as to easy for connecting to a packing machine and saving energy and at the same time reduce the machine running burden.

3.In the Ear loop conveyor procedure there would be a vibrating device so as to straighten the loop.
