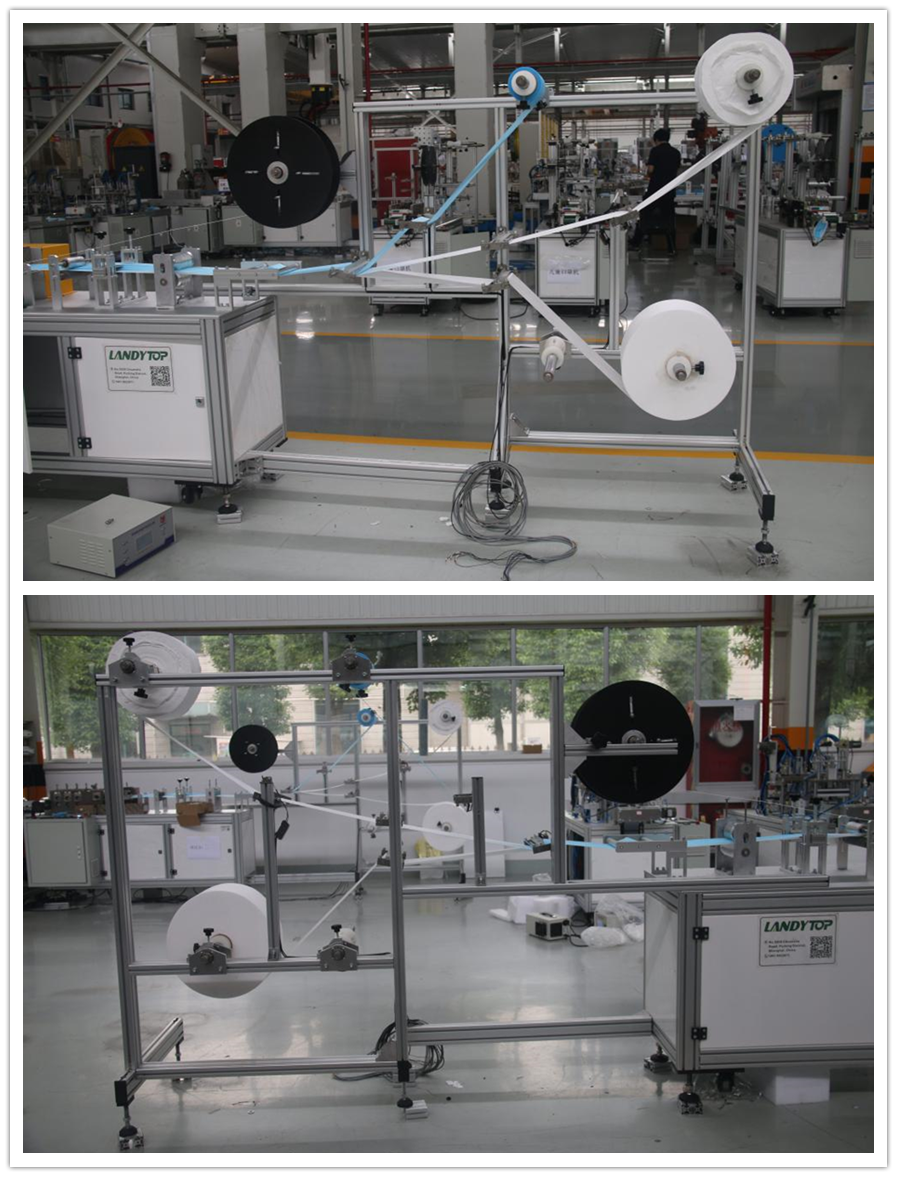

Kid (Children) Face Mask Production Line

The face mask machine will finish all the processing from the feeding to nose-clip fixing, edge sealing, cutting the finished products automatically, complete line include 1 set mask making machine and 1 sets automatic ear loop welding machine. With the new generation of mask machine equipment, the number of cylinders used is reduced, and motors are used instead, so that the failure rate is greatly reduced and the production eficiency rises linearly.

Kid (Children) Face Mask Production Line

No.

Items

Descriptions

1

Basic specification
Applicable for 2 layer or 3 layer mask with ear hook mask welding machine

2

Machine weight
1065kgs

3

Electrical specification
220V±5%, 50HZ, single phase, 5kw

4

Air pressure
0.5-0.7MPA,150L/min (Required Air Compressor 7.5KW)

5

Required environment
humidity 5% -35% RH, temperature 10-35 degrees, no dust, no flammable and corroded air.

6

Size
14.5cmx9cm (can be customized)

7

Production speed (1 main unit of face mask machine)
100pcs/min

8

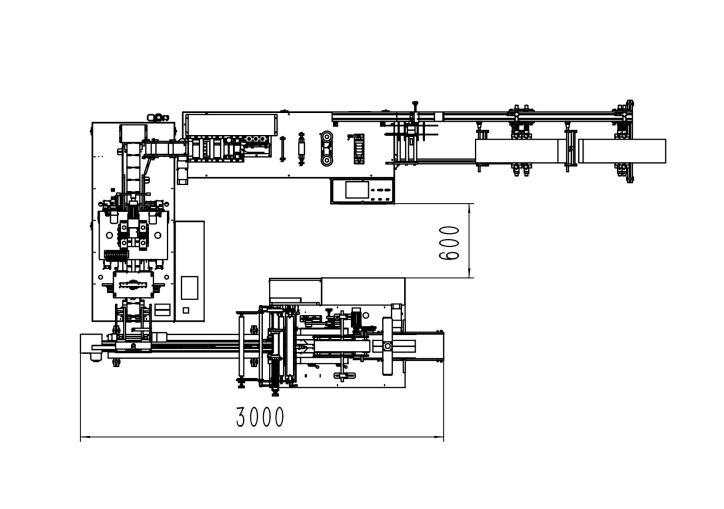

Machine size (please refer to the physical size)
5000mm(L)X3600mm(W)X1980mm(H)

ENQUIRY

Back to list E-mail: sales05@landytop.com|Tel: +86-21-60346873

Hot Products

Full Automatic Cup Type Mask Production Line LT004

This cup mask making machine is designed to automatically manufacture cup masks. The operator only needs to All the processes, including fabric feeding, elastic band welding, waste discharging and finished product conveying, can be finished automatically. Only 1 operator is required to monitor the machine. Compared with conventional process, this automatic face mask forming machine saves costs of 8 to 11 operators, and obviously improves production efficiency and quality of mask.

Full Automatic Foldable N95/FFP2 Mask Production Line with Valve

Full Automatic Foldable N95/FFP2 Mask Production Line with Valve is an automatic machine for making folded mask with exhalation valve. Only 1 operator is required to operate this automatic folded mask making machine, and processes from material feeding to exhalation valve welding can be finished automatically.

1+1 Face Mask Machine Line with Packing machine 50 pcs per Bag

Automatic surgical mask making machine, used for disposable masks, from feeding, nasal line implantation, welding/folding/cutting of blank masks, earring knitting to the completion of the complete mask. Then the finished mask is passed through the packaging machine to complete the automatic packaging. A pack of 50 masks. It can ensure the quality of the mask, greatly reduce the chance of people contacting the materials, and save labor costs. The production capacity reaches 110pcs/min.

Full Automatic N95/FFP2 Mask Making Machine LT003

This high speed automatic N95 mask making machine is designed to manufacture folded face masks with speed of 65+ pcs/min. All the processes, including fabric feeding, elastic band welding, folding, forming and cutting, waste discharging and finished product conveying, can be finished automatically. Only 1 operator is required to monitor the machine.

1+1 Medical Face Mask Line+UV Sterilization+Vision Checking+Packing Machine

Automatic surgical mask making machine, used for disposable masks, from feeding, nasal line implantation, welding/folding/cutting of blank masks, earring knitting to the completion of the complete mask. Then pass the finished mask through the ultraviolet sterilization box, our visual inspection system can intelligently select qualified products, and finally complete automatic packaging. It can ensure the quality of the mask, greatly reduce the chance of people contacting the materials, and save labor costs. The production capacity reaches 110pcs/min.

1+2 High Speed Full Automatic Face Mask Machine Lt002 With Packing Machine

Automatic surgical mask making machine, used for disposable masks, from feeding, nasal line implantation, welding/folding/cutting of blank masks, earring knitting to the completion of the complete mask. Then the finished mask is passed through the packaging machine to complete the automatic packaging. It can ensure the quality of the mask, greatly reduce the chance of people contacting the materials, and save labor costs. The production capacity reaches 150pcs/min.
