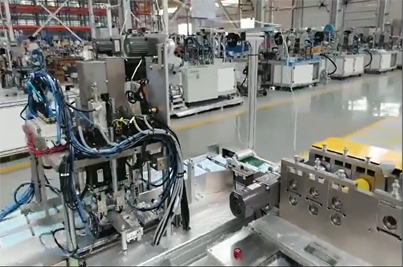

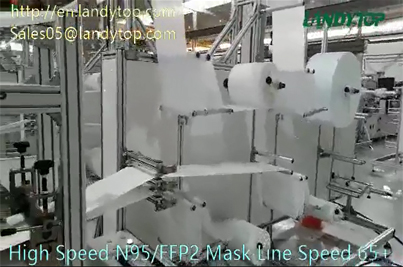

Full Automatic N95/FFP2 Mask Making Machine LT003

This high speed automatic N95 mask making machine is designed to manufacture folded face masks with speed of 65+ pcs/min. All the processes, including fabric feeding, elastic band welding, folding, forming and cutting, waste discharging and finished product conveying, can be finished automatically. Only 1 operator is required to monitor the machine.

Full Automatic Foldable N95/FFP2 Mask Production Line

No.	Items	Descriptions
1	Basic specification	Applicable for N95 mask with machine ear hook face mask welding
2	Machine weight	3000kgs
3	Electrical specification	220V±5%, 50HZ, single phase, 13kw
4	Air pressure	6Kg/cm2, 750L/Min (required air compressor7.5kw)
5	Required environment	humidity 5% -35% HR, temperature 10-35 degrees, no dust, no flammable and corroded air

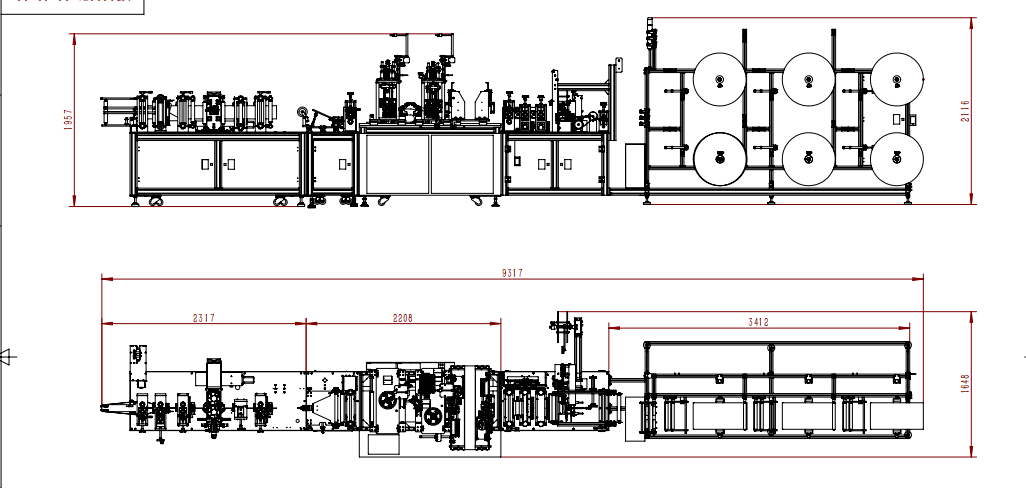

6	Machine size (please refer to the physical size)	8286 × 1500 × 1650mm
7	Capacity	65+ per minute
8	System power consumption ultrasonic	1500W*4 sets
9	Ultrasonic system frequency	20KHz

ENQUIRY

Back to list E-mail: sales05@landytop.com|Tel: +86-21-60346873

Hot Products

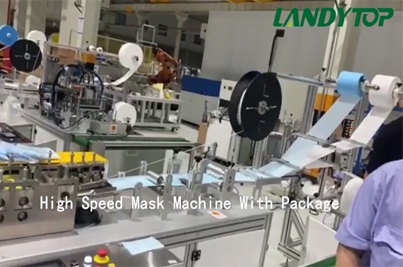

1+2 High Speed Full Automatic Face Mask Machine Lt002 With Packing Machine

Automatic surgical mask making machine, used for disposable masks, from feeding, nasal line implantation, welding/folding/cutting of blank masks, earring knitting to the completion of the complete mask. Then the finished mask is passed through the packaging machine to complete the automatic packaging. It can ensure the quality of the mask, greatly reduce the chance of people contacting the materials, and save labor costs. The production capacity reaches 150pcs/min.

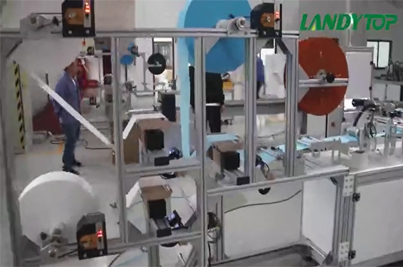

1+1 Medical Face Mask Line+UV Sterilization+Vision Checking+Packing Machine

Automatic surgical mask making machine, used for disposable masks, from feeding, nasal line implantation, welding/folding/cutting of blank masks, earring knitting to the completion of the complete mask. Then pass the finished mask through the ultraviolet sterilization box, our visual inspection system can intelligently select qualified products, and finally complete automatic packaging. It can ensure the quality of the mask, greatly reduce the chance of people contacting the materials, and save labor costs. The production capacity reaches 110pcs/min.

Full Automatic N95/FFP2 Mask Making Machine LT003

1+1 Face Mask Machine Line with Packing machine 50 pcs per Bag

Automatic surgical mask making machine, used for disposable masks, from feeding, nasal line implantation, welding/folding/cutting of blank masks, earring knitting to the completion of the complete mask. Then the finished mask is passed through the packaging machine to complete the automatic packaging. A pack of 50 masks. It can ensure the quality of the mask, greatly reduce the chance of people contacting the materials, and save labor costs. The production capacity reaches 110pcs/min.

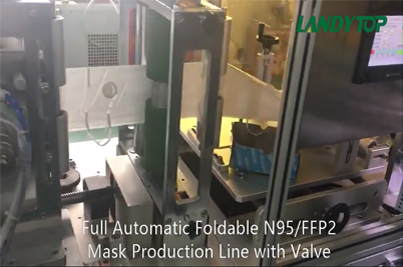

Full Automatic Foldable N95/FFP2 Mask Production Line with Valve

Full Automatic Foldable N95/FFP2 Mask Production Line with Valve is an automatic machine for making folded mask with exhalation valve. Only 1 operator is required to operate this automatic folded mask making machine, and processes from material feeding to exhalation valve welding can be finished automatically.

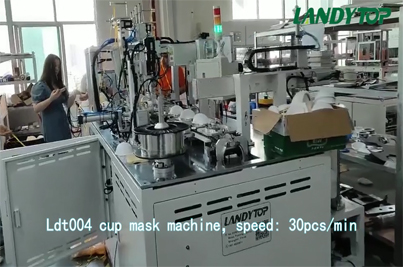

Full Automatic Cup Type Mask Production Line LT004
