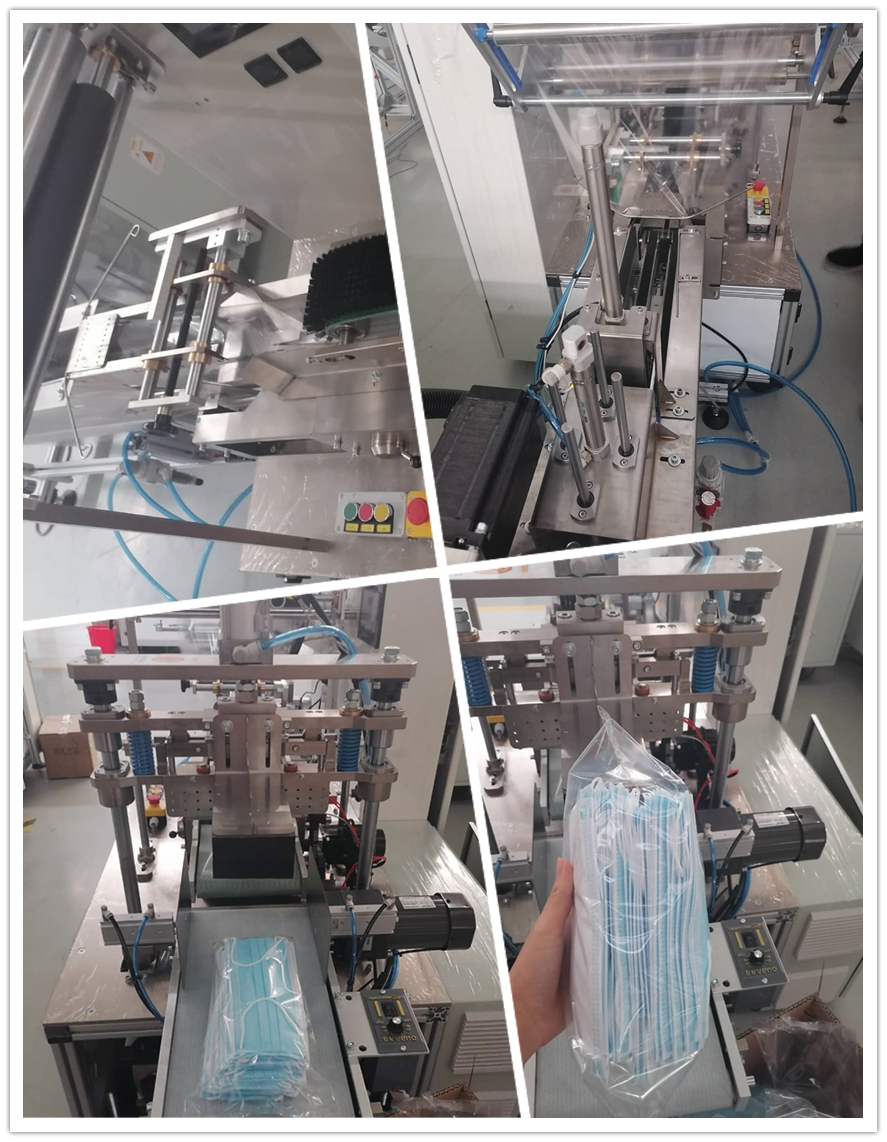

Film Packing Machine for 50 Masks Per Bag

Automatic disposable medical surgical face mask packing machine for 50 PCS per bag.This Packing Machine controlled by dual frequency converter ,the bag is cut as soon as its length is set , which make the machine donot need to be adjusted to run idle,with time saving and film saving.Adopted the man-machine interface display screen, it is convenient and quick to set parameter.Because of having a function of the fault self-diagnosis, the fault will be showed in the screen at a glance.Photoelectric sensor is highly sensitive to tracking color target, the numerical input about the position of sealing and cutting make the position more accurate .Drive system is concise,running is more reliable, the maintenance is more convenient .
Film Packing Machine for 50 Masks Per Bag
Film & Thickness
OPP / 0.012-0.07mm
Film Width: Max 320mm
Film Roll Diameter: 320mm
Bag Size
W: 20-100mm H: 80-260mm
Packing Speed
10-80 bag/min
Electric Spec.
220V/50Hz
Power Consumption
2.4KW
Machine Dimension
4000X930X1370mm
Packing Dimension
Two Packages:
Main Body: 1560*850*1520mm=2.016CBM
Conveyor: 2670*550*360mm=0.534CBM
Machine Weight
465kgs
G.W.
528kgs
Testing Film
Include one small roll
