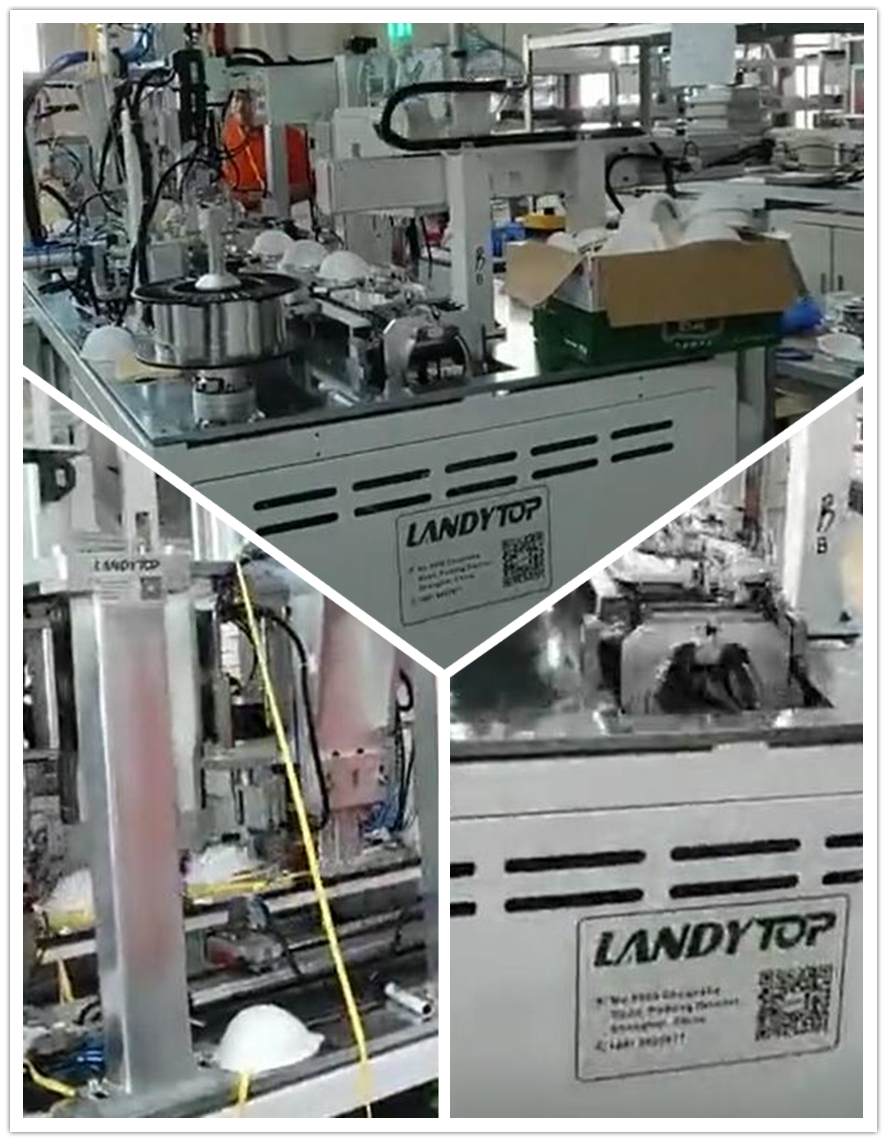

Automatic Cup Type Mask Welding Line

Compared with separated welding and cutting operations of conventional cup mask making machines, this rotary cup mask welding and cutting machine has integrated these two operations for enhanced productivity and ease of operation.
Automatic Cup Type Mask Welding Line
No.
Items
Descriptionsns
1
Basic specification
Applicable for cup mask with machine
ear hook face mask welding
2
Machine weight
2000kgs
3
Electrical specification
220V±5%, 50HZ, single phase, 7kw
4
Air pressure
0.6-0.8MPA,150L/min (Required Air Compressor 3.7KW)
5
Required environment
humidity 5% -35% RH, temperature 10-35 degrees, no dust, no flammable and corroded air.
6
Production speed (1 main unit of face mask machine)
900-1200pcs/H
7
Machine size (please refer to the physical size)
3370mm(L)X1060mm(W)X1760mm(H)
