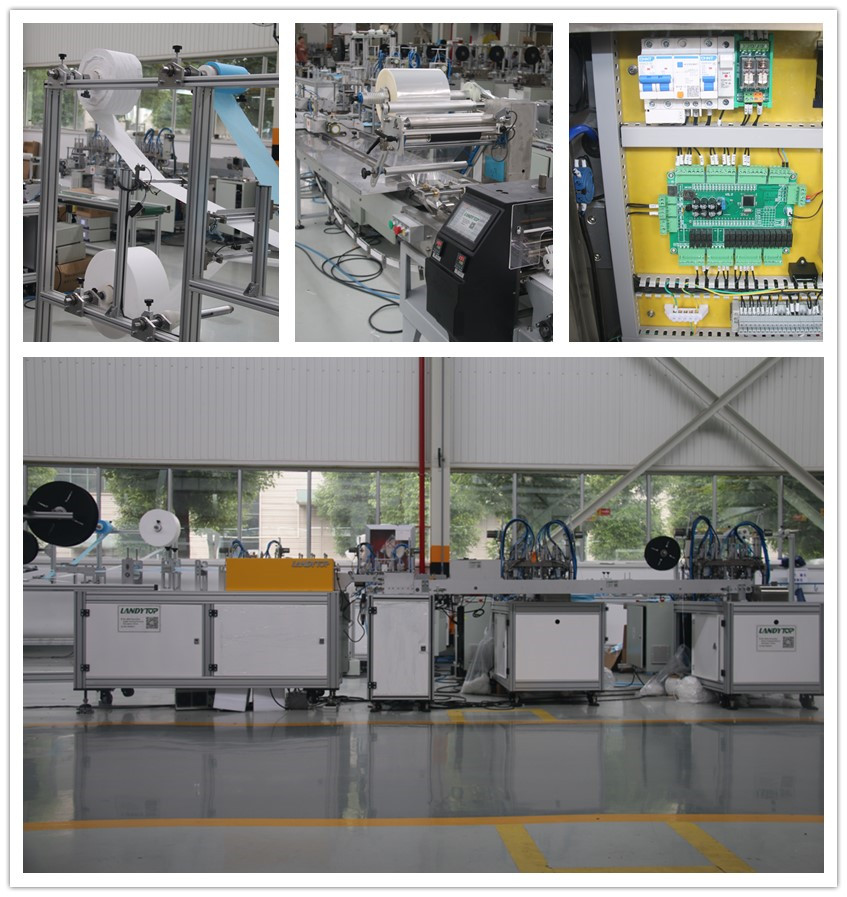

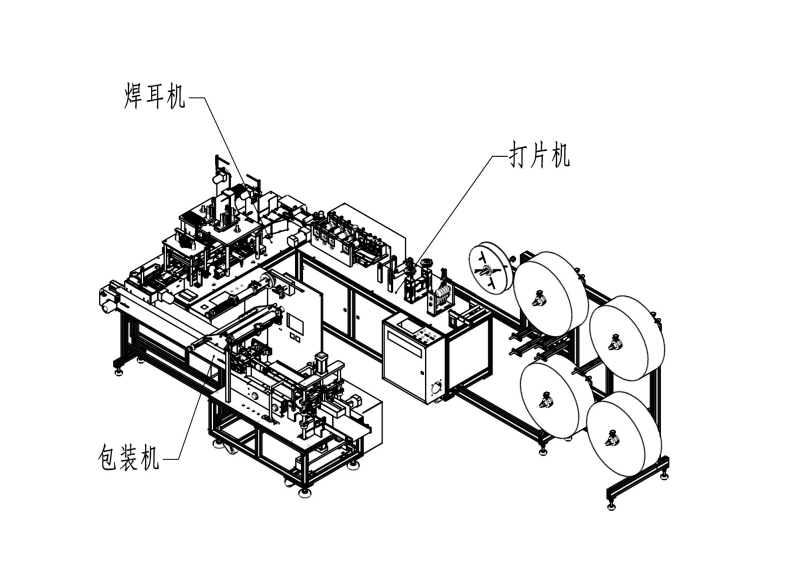

1+1 Surgical Mask Machine with Packing Machine LT001

Automatic surgical mask making machine, used for disposable masks, from feeding, nasal line implantation, welding/folding/cutting of blank masks, earring knitting to the completion of the complete mask. Then the finished mask is passed through the packaging machine to complete the automatic packaging. It can ensure the quality of the mask, greatly reduce the chance of people contacting the materials, and save labor costs. The production capacity reaches 110pcs/min.

1+1-surgical-mask-machine
No.
Items
Descriptions
1
Basic specification
Applicable for 2 layer or 3 layer mask with ear hook mask welding machine
2
Machine weight
1065kgs
3
Electrical specification
220V±5%, 50HZ, single phase, 10kw
4
Air pressure
0.5-0.7MPA,150L/min (Required Air Compressor 3.7KW)
5
Required environment
humidity 5% -35% RH, temperature 10-35 degrees, no dust, no flammable and corroded air.
6
Size
17.5cmx9.5cm (can be customized)
7
Production speed (1 main unit of face mask machine)
110pcs/min
8
Machine size (please refer to the physical size)
5000mm(L)X3600mm(W)X1980mm(H)

Packing-machine
Film & Thickness
OPP / 0.012-0.07mm
Film Width: Max 320mm
Film Roll Diameter: 320mm
Bag Size
W: 20-100mm H: 80-260mm
Packing Speed
10-80 bag/min
Electric Spec.
220V/50Hz
Power Consumption
2.4KW
Machine Dimension
4000X930X1370mm
Packing Dimension
Two Packages:
Main Body: 1560*850*1520mm=2.016CBM
Conveyor: 2670*550*360mm=0.534CBM
Machine Weight
465kgs
G.W.
528kgs
Testing Film
Include one small roll

Lt001 Automatic High Speed 110+ Face Mask Machine with latest technology:


1.Rectification Device to make sure easy mounting.


2.In the welding folding, we use "Cold Folding”, so as to easy for connecting to a packing machine and saving energy and at the same time reduce the machine running burden.


3.In the Ear loop conveyor procedure there would be a vibrating device so as to straighten the loop.
