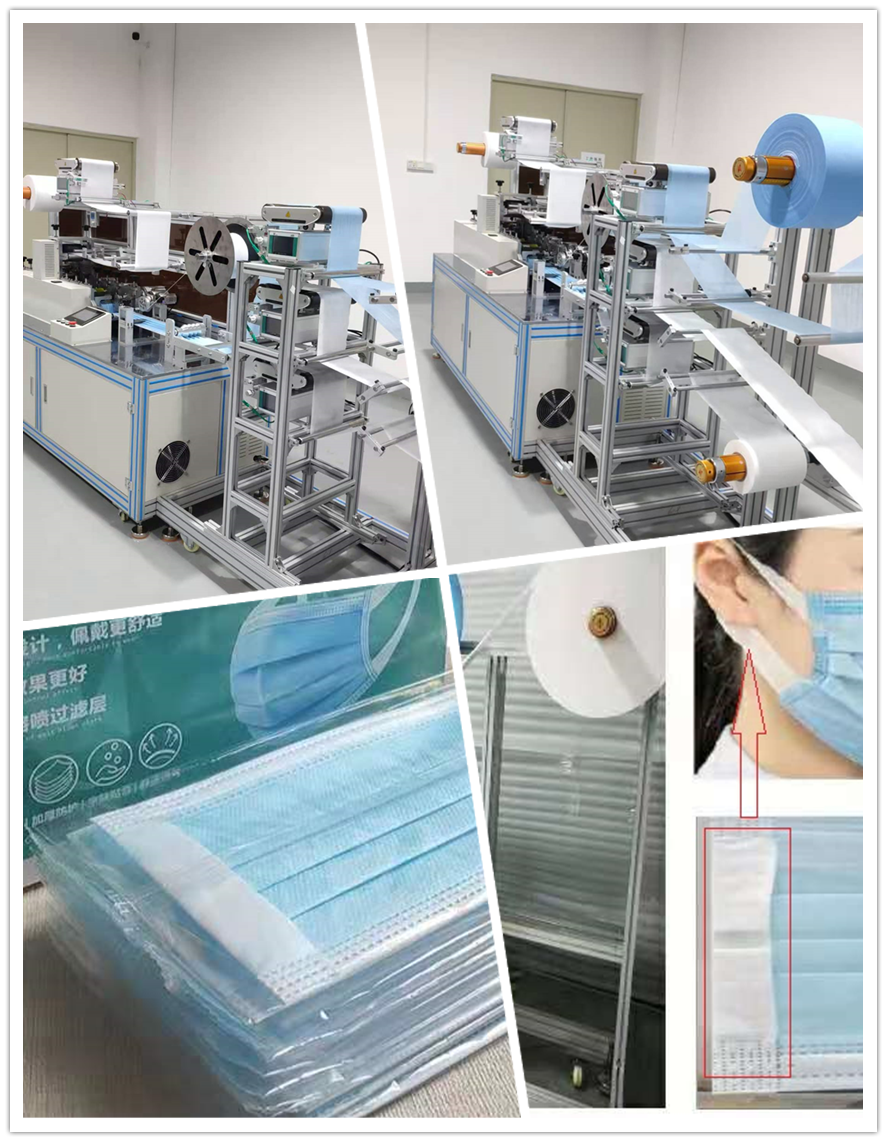

Wide Elastic Ear Band Mask Machine

All In One Elastic Ear Loop Non-woven Wide Ear Band Face Mask Machine is used to produce the flat masks. The earloop is elastic and width, more comfortable for customer's ears. It through PLC programming control, automatic feeding, embossing, earloop welding function to once form the masks. The machine has a high degree of automation, simple operation, more humanized characteristics.
Wide Elastic Ear Band Mask Machine

No.

Items

Descriptions

1

Basic specification
Applicable for 3 layer elastic ear band mask

2

Machine weight
1000kgs

3

Electrical specification
220V±5%, 50HZ, single phase, 18kw

4

Air pressure
0.5-0.7MPA,150L/min (Required Air Compressor 3.7KW)

5

Required environment
humidity 5% -35% RH, temperature 10-35 degrees, no dust, no flammable and corroded air.

6

Size
17cmx9.5cm (can be customized)

7

Production speed
200-300pcs/min

8

Machine size (please refer to the physical size)
5000mm(L)X1000mm(W)X1950mm(H)
